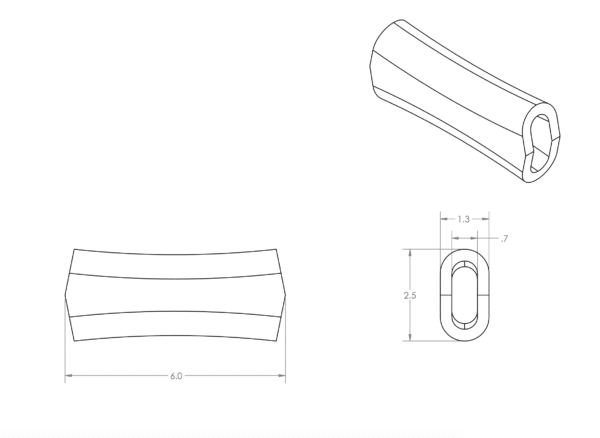

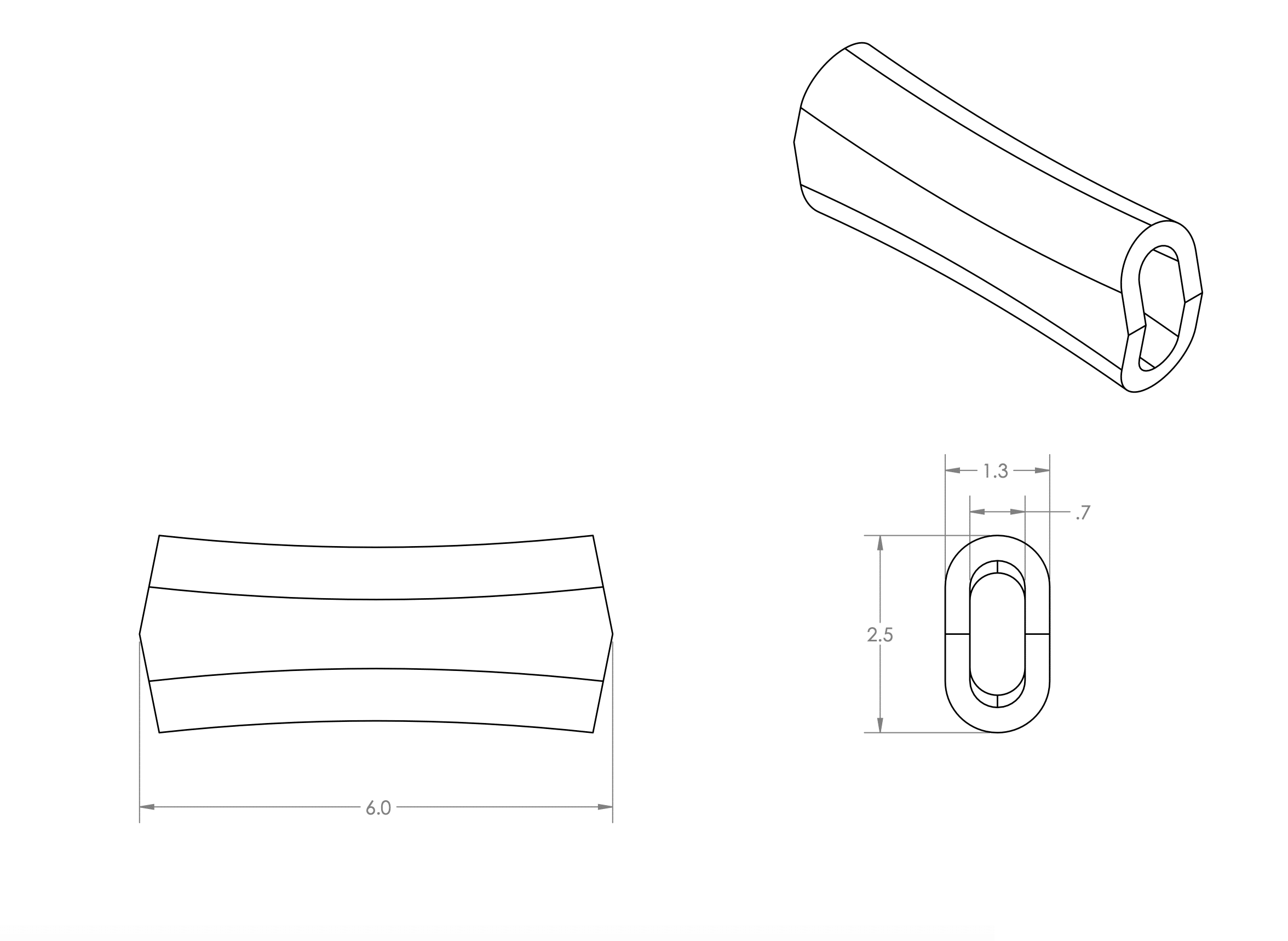

Dog Bone Anchor, .5″

100% machined and assembled in the U.S.A.

As low as $27.00 each

These intermediate stressing splice couplers can be used to join two sections of cable and facilitates restressing of the tendon at the splice location. These are known in the industry as dog-bones and are commonly used for tendon repair when stressing from a terminal anchor location is not possible or desired. This splice requires the use/order of two CH50D Barrel Chucks and WG50122 wedges for each splice.

Key Benefits:

  • Permits restressing of tendon from the splice location
  • Low cost
  • Easy to use


Standard Packaging: 1 each

Shipping info:
Not available online, must email sales@pt-prod.com
