Non-adjustable Anchors – for 3/4″ all thread

100% machined and assembled in the U.S.A.

Available Soon

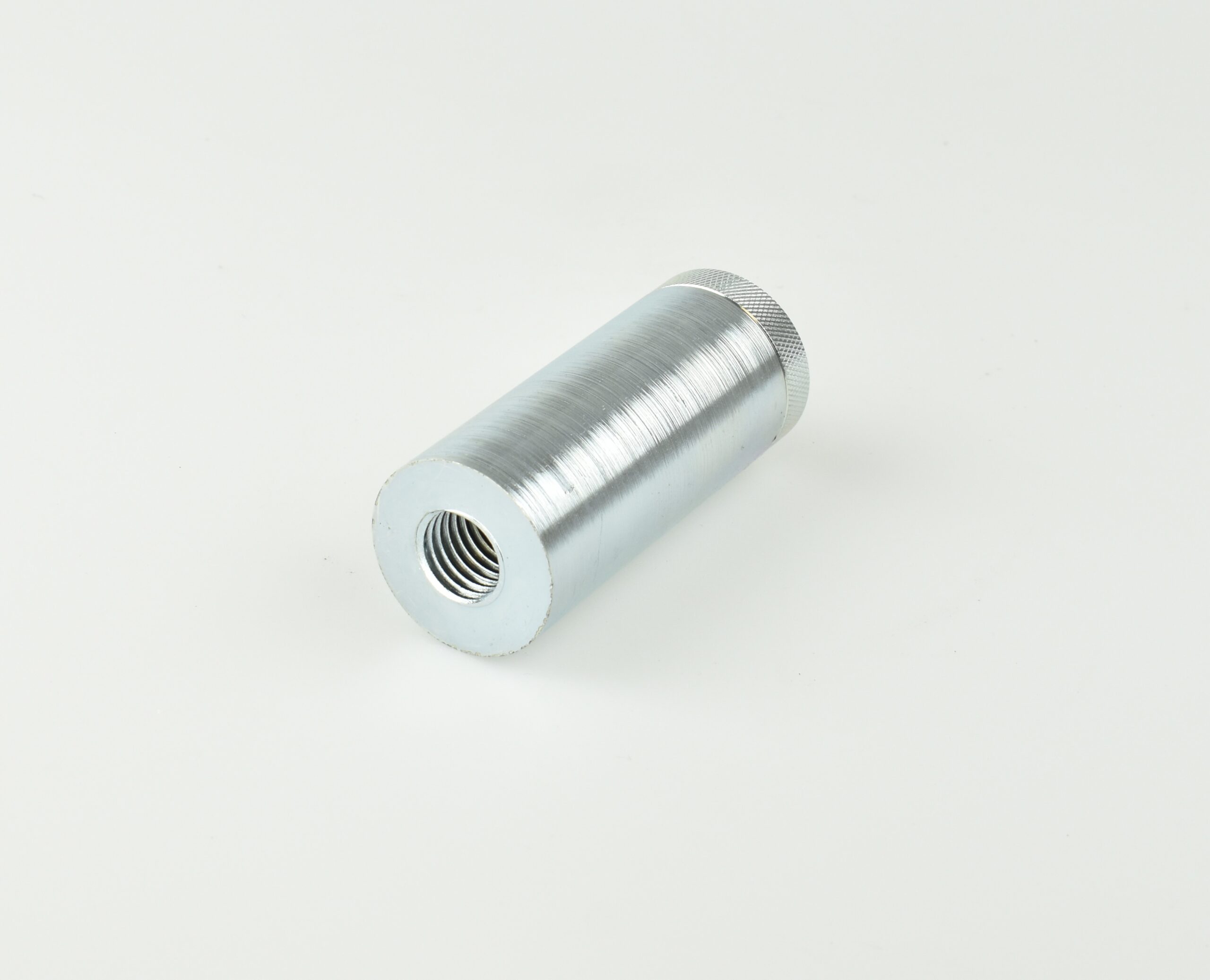

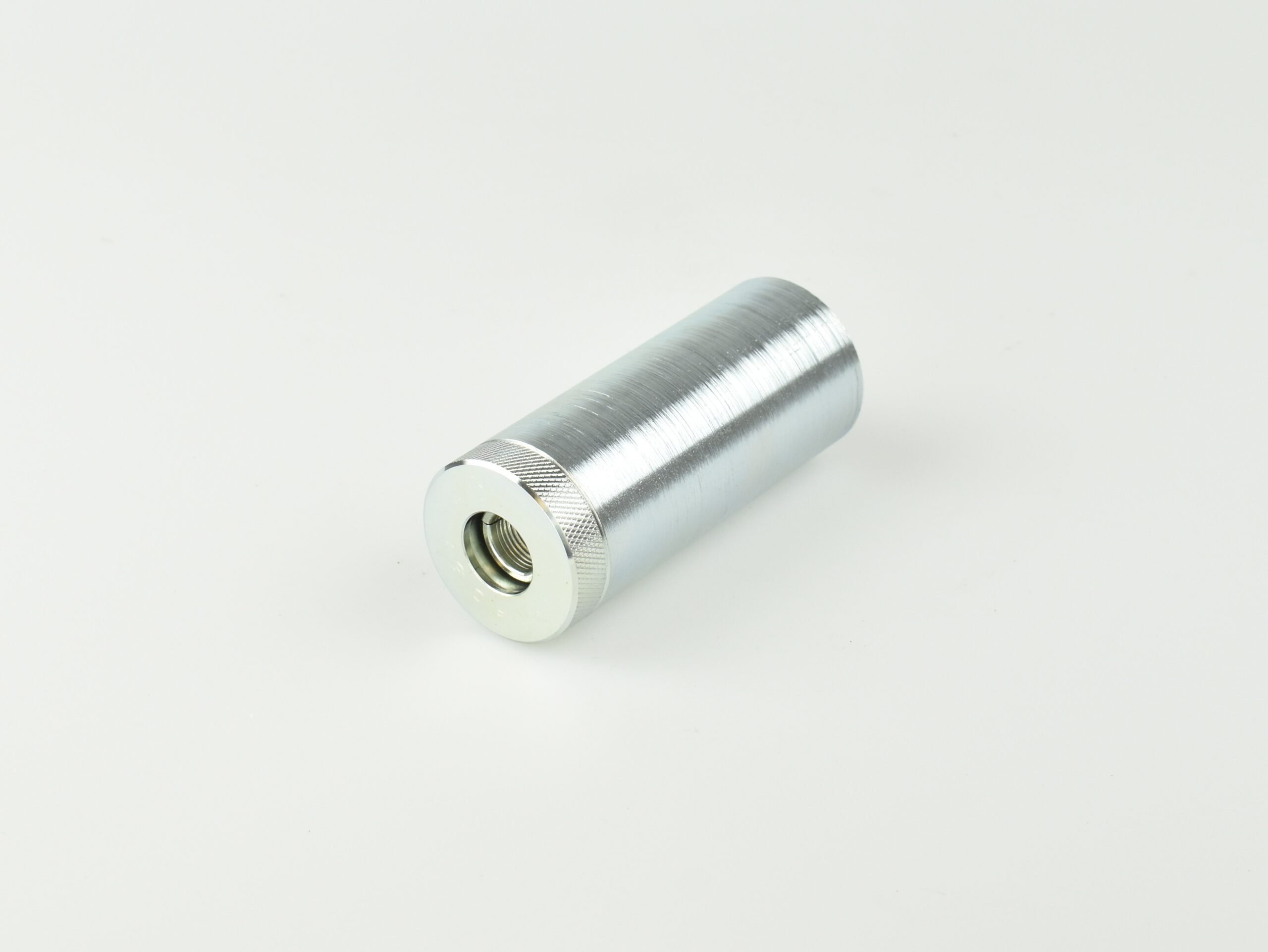

These fixed end anchors can be used at the terminal point of a barrier cable span when tensioning is provided at the opposing terminal end. At only 1.5” in diameter, these anchors make barrier cable installations look sleek and less visually intrusive. The anchor is machined with 3⁄4” x 10 UNC internal threads for use with all thread rods. Can be attached to our EZPlace Cable Rail embedment, or other commonly available threaded anchor embeds.

Surface mounted barrier cable anchors can be used when through column anchorages are not possible, or not desired. Such as when through column stressing locations will be covered by walls or other obstructions that will prevent later access to the stressing anchors. Stressing cable runs from the structure interior is also safer and easier than stressing cables from the exterior using a high-lift or scaffolding. Anchors always remain accessible, which eliminates the need to remove concrete to expose anchor ends for maintenance or repair.

Key Benefits:
– Safer than stressing cables from the structure exterior
– Anchors are always accessible
– Makes cable maintenance and replacement easier and cheaper
– Fits 3⁄4” x 10 UNC all thread rods of any length
– Fully zinc coated for durability
– Eases barrier cable installation

Contact for pricing and availability

Shipping info:
Not available online, must email
