MCLO2

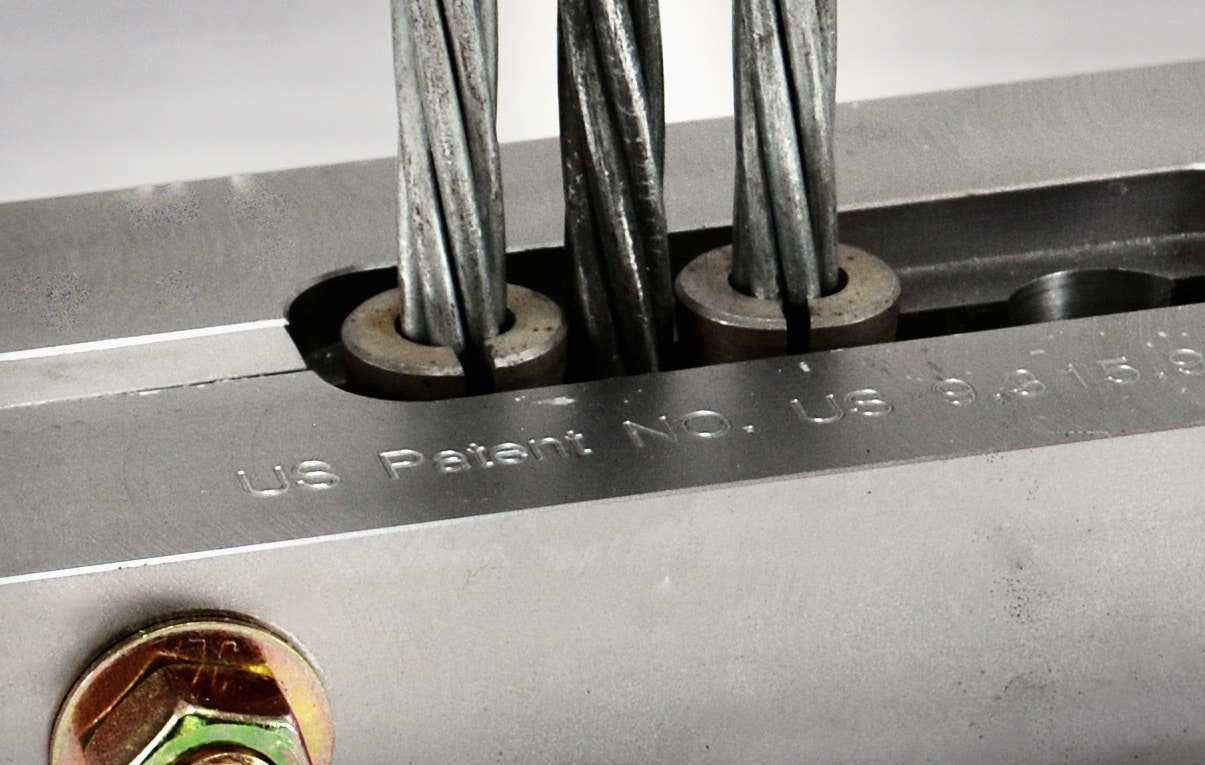

Multi-Cable Temporary Anchor – 3 Cavity Lock-Off Anchor

This innovative Patented cable anchor system allows the user to temporarily transfer the load of multiple, bundled post-tensioned cables safely. No more stacking of single cable lock-off anchors.

There are several unique design features of the anchor that permit the Multi-Cable Lock-Off Anchor to lock-off up multiple post-tensioned cables:

• The wide anchor slot will permit a single bundle to fit within the anchor.
• The recessed wedge face allows the anchors to be stacked on top of each other, which is critical to locking-off all the cables in a bundle.
• Designed for use with 1/2 ” strand only.

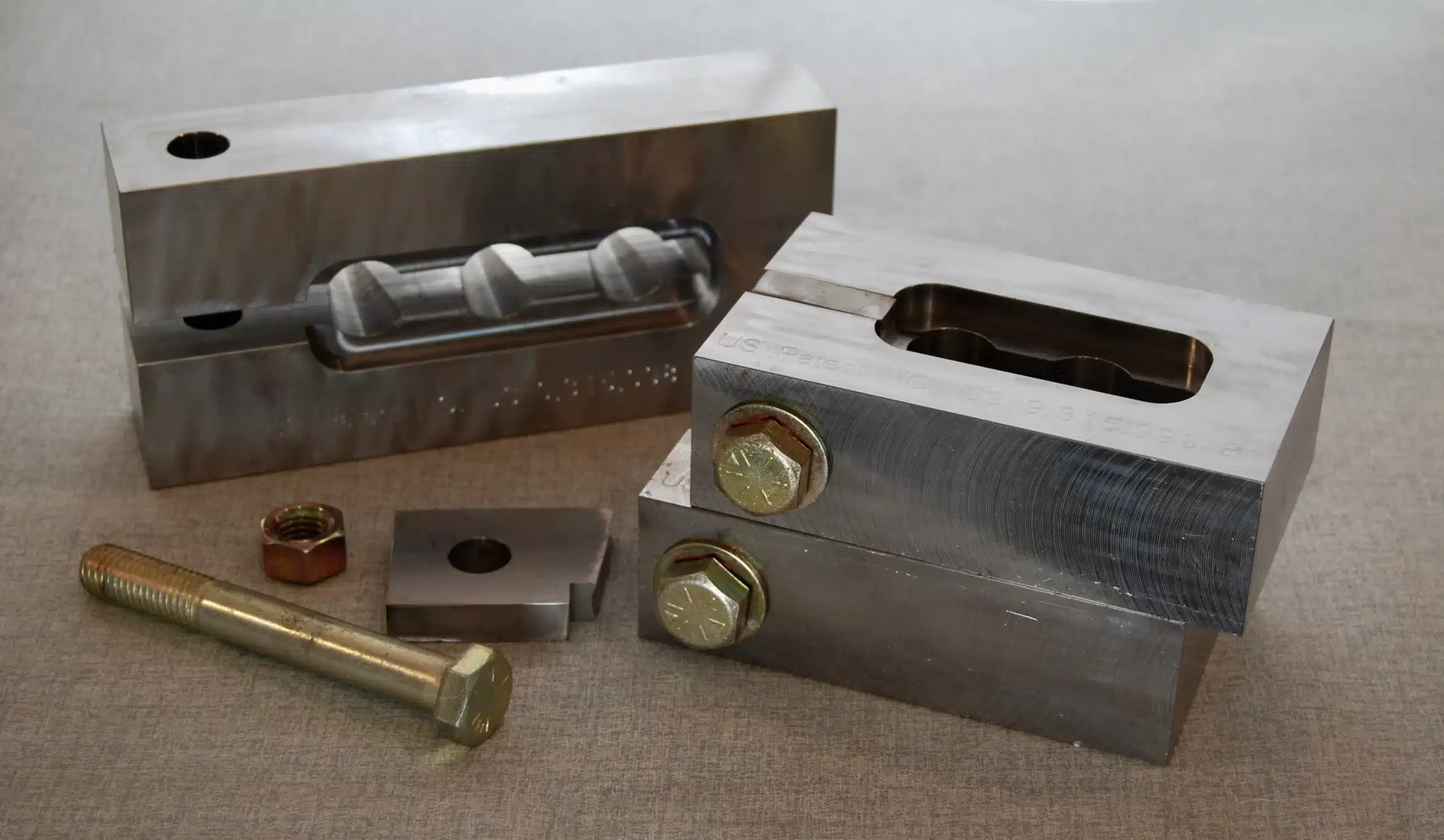

The anchors are available in either a two or three cavity design.

Shipping Details
Weight; 16.50 lbs ea
