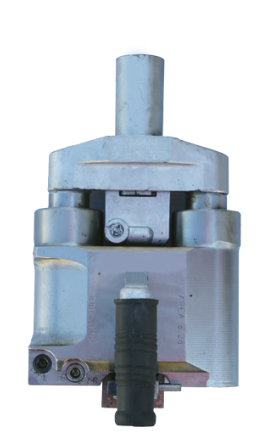

Short 3" Stroke Double Acting Power Seating Jack - 20 ton
The is a shorter version of the classic 5DA1 stressing jack for .5” tendons. It is a double acting power seating jack, has a 20-ton capacity with an 3" stroke. The overall closed length of this jack is 12". This durable jack is machined from a solid steel billet. It comes assembled with a 3" HSA nose, but other nose lengths are available upon request. The ram includes two 8' and one 26" hydraulic hoses with quick connects and fittings for power seating jack.
This stressing jack requires the use of the PE554PTFM SPX Power Team PE554PT hydraulic pump.
Key Benefits:
- Durable
- Easy to use
- Rapid cycle time
System Includes:
- 1 Each: Power Seating Stressing Jack
- 1 Each: 3" nose
- 2 Each: 8' hydraulic hoses with quick connects
- 1 Each: 26" hydraulic hose with quick connects
Our stressing equipment is not provided with a current calibration report. However, we can have the new equipment calibrated for an additional $250.00 cost, plus an additional shipping fee. The stressing jack and the hydraulic pump must be calibrated together, and the equipment can't be tested individually. Please call (833) 508-1593 or email sales@pt-prod.com to include equipment calibration with your order.
